• Voron Tap

Everything needed for Voron Tap!

RC8 calls for m3x50 *fully threaded* for stiffening as an option. Not sure I can source these, am looking in to it



Update: You can now select OPB666N if you like, these are very limited stock.

You can now add on a 5V SB PCB if you like, this is intended as a replacement for your existing one, with the FS port replaced with a 5V probe port. Drop in replacement for earlier Hartk SB PCBs. One Piece or Two Piece. Only the main board (not the secondary on the 2pc) and without connectors, as it's intended as a swapout.

In addition to the above BoM, comes with 2 extra magnets and two M2x10 self tappers for Unklicky Tap

You have the option of a PrintyPlease branded 50mm Rail with high preload, these have been tested with Tap and perform well, or for those of you that want to go further, a genuine hiwin 50mm MGN9.

You also have the option of a Small PCB (needs the wires soldered to it) or a Large PCB (has a JST connector). The Small PCB is 5V only. Do not put 24V through it. The large PCB is 24V capable.

Write a review

Note: HTML is not translated!
    Bad           Good

Voron Tap

  • Product Code: Tap
  • Availability: In Stock
  • £29.00

  • Ex Tax: £24.17

Available Options

Related Products

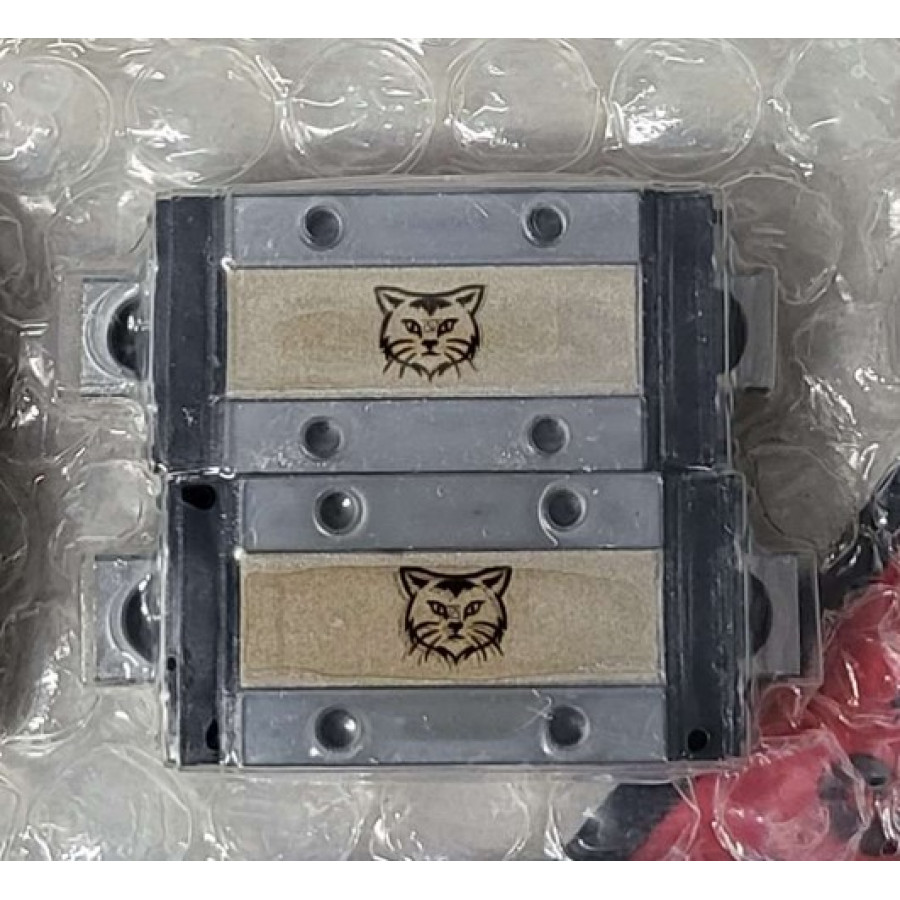

Monorail Cat 50mm (MGN9H for tap)

Monorail Cat 50mm (MGN9H for tap)

Tiny MGN9H rail for Tap. Z2 preload - won't move under it's own weight by design, will move by the t..

£11.95 Ex Tax: £9.96

Voron Tap Microswitch Edition

Voron Tap Microswitch Edition

Everything needed for Voron Tap, Microswitch Edition!!https://discord.com/channels/46011760294599066..

£27.00 Ex Tax: £22.50

Voron TAP PCB Only with OPB666N Sensor

Voron TAP PCB Only with OPB666N Sensor

5V Tap PCB with OPB666N Sensor, rated to 100C. These sensors are at this point relatively rare so ot..

£9.95 Ex Tax: £8.29
