• OMC Voron High Torque Stepper

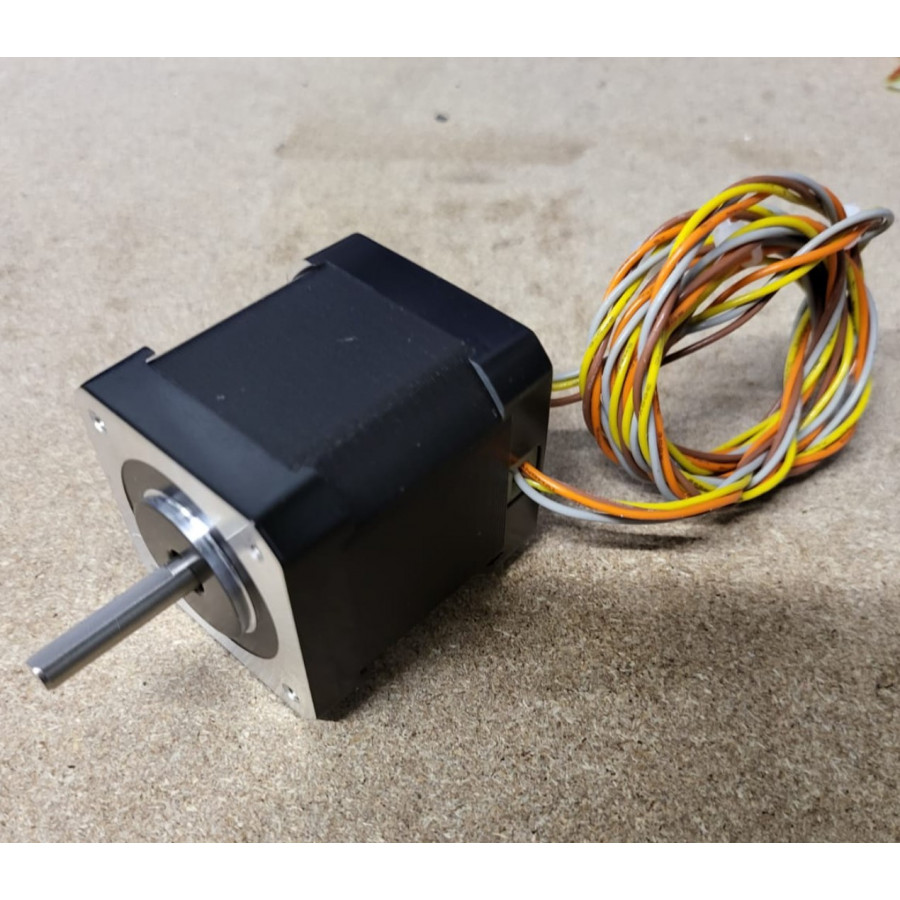

OMC 17HS19-2504S-H stepper.


These 1.8 degree 48mm steppers with an excellent autumnal wire theme were designed to rival the popular LDO 2504s, with the aid of vinnycordeiro#1974 from Voron Discord.


They are OMC's competitor to LDOs 2504AH motors. Both are awesome motors! I'm an LDO reseller and love LDO, but we're not exclusive ;)


I'll draw your attention to what I think is the most important difference between these and the LDO 2504AH, Rotor inertia is significantly reduced, from 84.5g/cm2 to 68g/cm2, which in theory means less effort for them to change direction, accelerate, decelerate.


At time of writing I don't have any of the LDO 2504AH motors in stock, but some are in a ship somewhere on the way to me. Once they arrive, they will be listed at the bottom of this listing.


I've decided to only ship these to the UK, so checkout won't complete if you're outside of the UK. If you desperately want some, DM me on discord.


Full Spec Sheet here: https://printyplease.uk/image/17HS19-2504S-H.pdf




Electrical Specification
Inductance(mH)1.6
Phase Resistance(ohm)1.1
Rated Current(A)2.5
Step Angle(deg.)1.8
Bipolar/UnipolarBipolar
Holding Torque(Ncm)55
Holding Torque(oz.in)77.93
Insulation Class

H 180C(356F)

Write a review

Note: HTML is not translated!
    Bad           Good

OMC Voron High Torque Stepper

  • Product Code: OMC Voron High Torque Stepper
  • Availability: In Stock
  • £26.40

  • Ex Tax: £22.00
  • Price in reward points: 2999
